Floating Seal 265x293x19 mm (10.43" x 11.54" x 0.75")

Floating Seal 265x293x19 mm (10.43" x 11.54" x 0.75")

$140.77 CAD
Skip to product information
Floating Seal 265x293x19 mm (10.43" x 11.54" x 0.75")
1/3
  • Floating Seal 265x293x19 mm (10.43" x 11.54" x 0.75")
  • Floating Seal 265x293x19 mm (10.43" x 11.54" x 0.75")
  • Floating Seal 265x293x19 mm (10.43" x 11.54" x 0.75")
Floating Seal 265x293x19 mm (10.43" x 11.54" x 0.75")

Floating Seal 265x293x19 mm (10.43" x 11.54" x 0.75")

$140.77 CAD

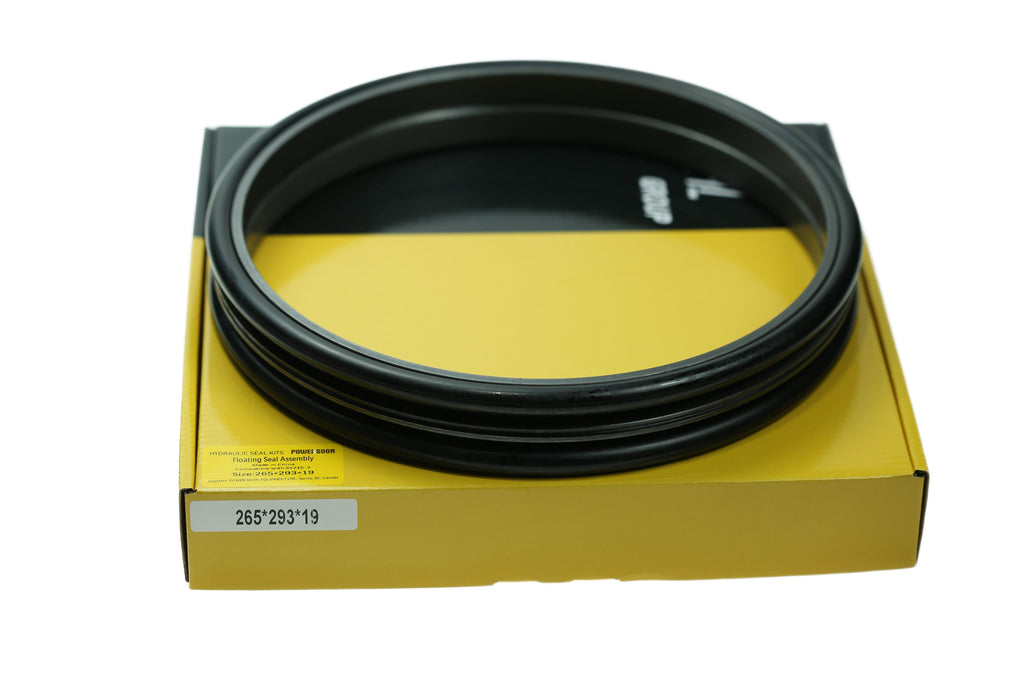

The 265x293x19 mm Floating Seal Group is engineered for heavy-duty protection in excavator final drives and crawler undercarriages.

  • Reliable Performance: Precision-lapped faces maintain a stable oil film to prevent leakage under high torque.

  • Tough Materials: High-chromium alloy construction provides excellent resistance to abrasion from sand, mud, and rocks.

  • Long-Lasting Seal: Premium NBR O-rings ensure constant sealing pressure across a wide temperature range.

  • Inner Diameter (ID): 265 mm (Approx. 10.43 inch)

  • Outer Diameter (OD): 293 mm (Approx. 11.54 inch)

  • Thickness (H): 19 mm (Approx. 0.75 inch)

  • Material: High-Alloy Cast Iron (15Cr3Mo)

  • Hardness: HRC 58-62

  • Package Includes: 2 Metal Rings + 2 Rubber O-rings

  • Service Life: 5000+ Hours
