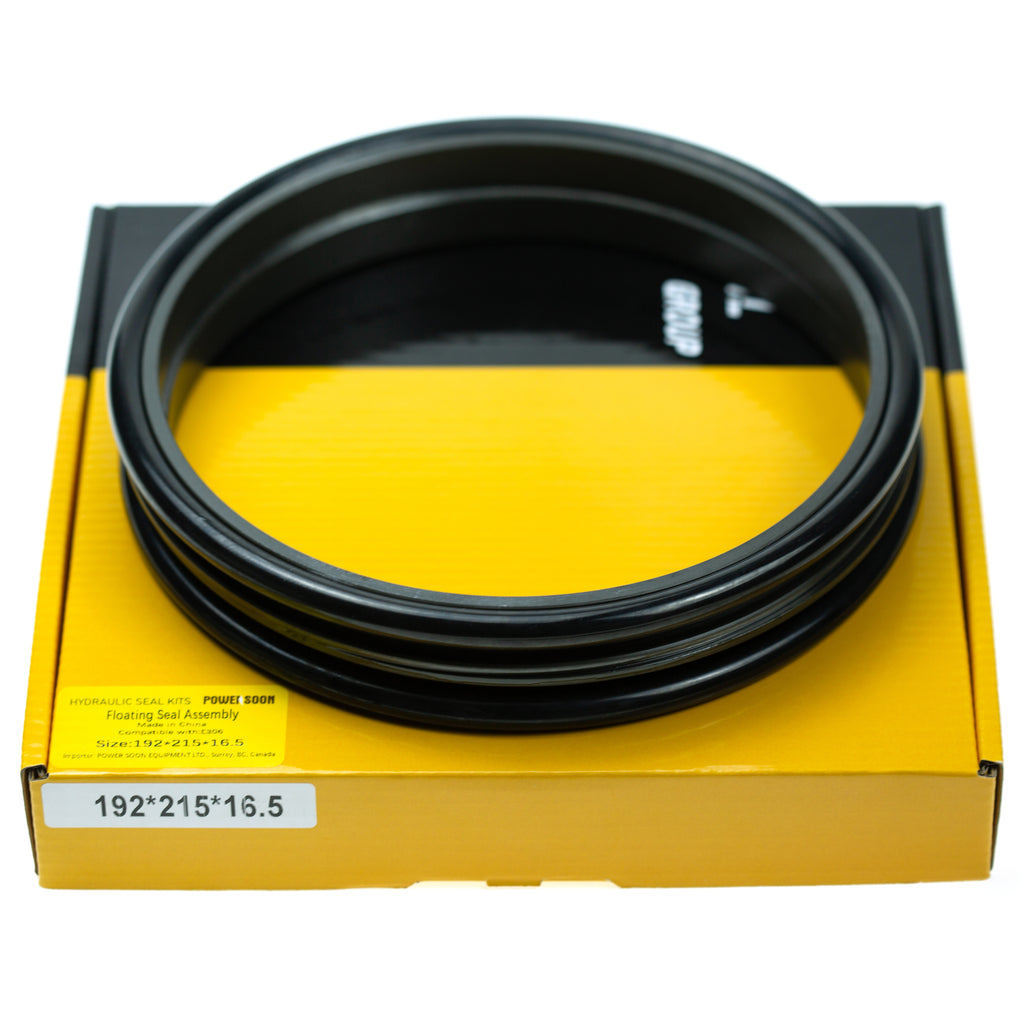

The 192x215x16.5 mm Floating Seal Group is engineered for high-performance sealing in rollers, idlers, and final drives.

• Reliable Protection: Designed to lock in lubricants while blocking external contaminants like mud, sand, and water.

• Premium Materials: Heat-treated alloy steel rings and high-elasticity NBR O-rings ensure stability under heavy loads.

• Optical Flatness: Diamond-lapped sealing faces maintain a consistent oil film, reducing friction and extending component life.

• Inner Diameter (ID): 192 mm (Approx. 7.56 inch)

• Outer Diameter (OD): 215 mm (Approx. 8.46 inch)

• Thickness (H): 16.5 mm (Approx. 0.65 inch)

• Material: High-Alloy Cast Iron (15Cr3Mo)

• Hardness: HRC 58-62

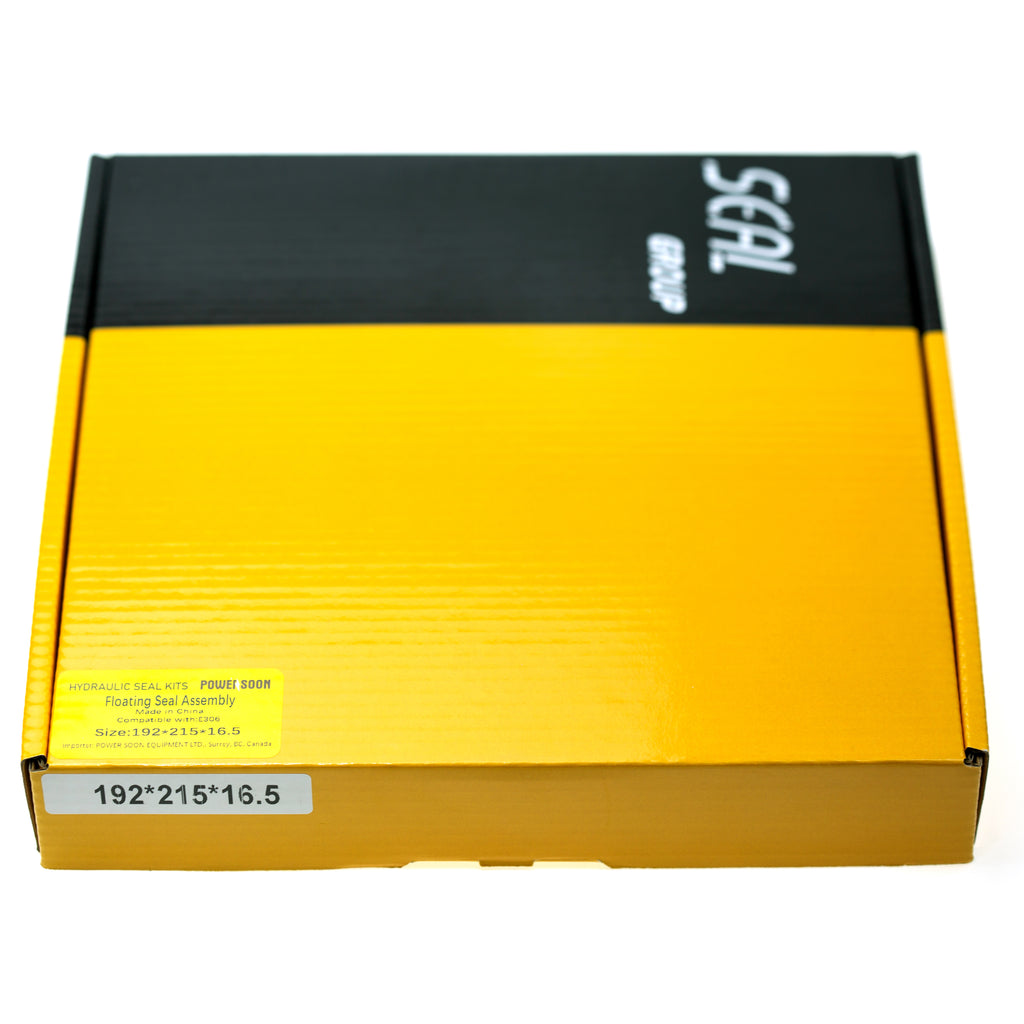

• Package Includes: 2 Metal Rings + 2 Rubber O-rings

• Service Life: 5000+ Hours
