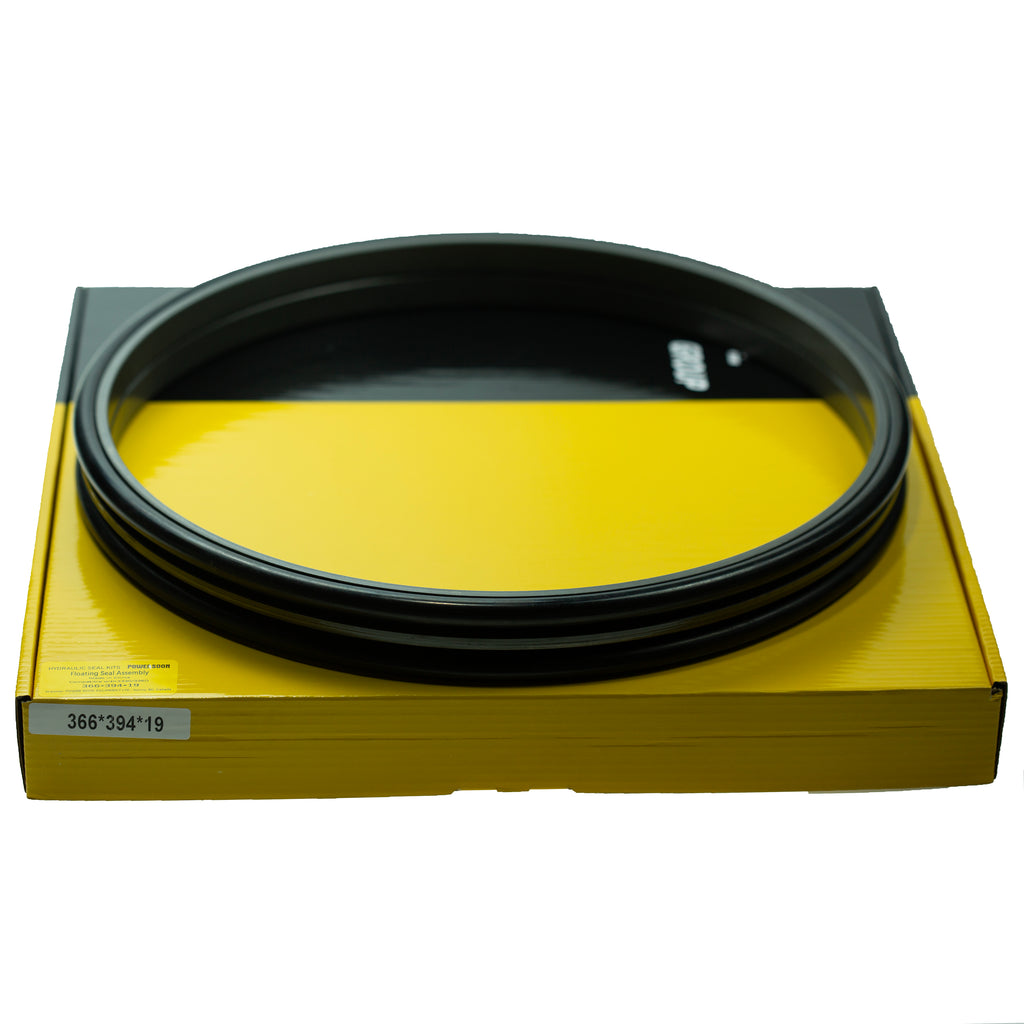

The 366x394x19 mm Floating Seal Group is a premium, large-diameter sealing solution for heavy mining and earthmoving machinery.

• Superior Oil Retention: Precisely diamond-lapped metal faces ensure a zero-leakage oil film even under massive torque.

• Rugged Construction: Made from heat-treated high-chromium alloy to resist abrasive rock dust and extreme soil conditions.

• All-Weather Performance: High-resilience O-rings maintain constant sealing pressure across a wide temperature range.

• Inner Diameter (ID): 366 mm (Approx. 14.41 inch)

• Outer Diameter (OD): 394 mm (Approx. 15.51 inch)

• Thickness (H): 19 mm (Approx. 0.75 inch)

• Material: High-Alloy Cast Iron (15Cr3Mo)

• Hardness: HRC 60-65

• Package Includes: 2 Metal Rings + 2 Rubber O-rings

• Service Life: 5000+ Hours
